1600 Curtain Wall System

Curtain Wall

1600 Wall System®4 Curtain Wall

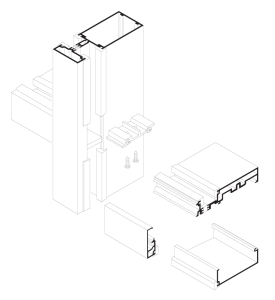

The versatile 1600 Wall System®4 Curtain Wall is an Inside Glazed (IG) captured curtain wall. The system accommodates monumental applications, multi-lite punched openings and ribbon windows for both new and remodel construction projects.

  • Narrow 2-1/4″ (57.2mm) sight line
  • Standard 6″ (152.4mm) or 7-1/2″ (190.5mm) depth systems for curtain wall and 6″ (152.4mm) depth for ribbon wall
  • IsoStrut® thermal barrier for superior structural and thermal performance
  • Low-rise to high-rise curtain wall applications
  • Integral vertical exterior cover and thermal barrier reduce installed cost
  • Horizontals have removable snap on stops to allow for easy re-glazing from the exterior
  • Standard infill options are 1/8″ (3.2mm), 1/4″ (6.4mm) and 1″ (25.4mm)
  • Concealed fastener joinery creates smooth, monolithic appearance
  • Shear, block fabrication method or screw spline option for ribbon windows
  • Standard 90° and 135° inside and outside corners available
  • Offers integrated entrance framing systems
  • Peroxide-cure high-performance EPDM silicone compatible glazing materials for long-lasting seals
  • Permanodic® anodized finish choices
  • Painted finishes in standard and custom choices
  • Accommodates monumental applications, multi-lite punched openings and ribbon windows in both new and remodel construction projects

Optional Features

  • Optional pressure plate system
  • Optional IsoLock® pour and debridge thermal break horizontals
  • Integrates with standard Kawneer windows and GLASSvent® windows for curtain wall
  • Steel reinforcing
  • Profit$Maker® Plus die sets
  • Dual-color option

Product Applications

  • Ideal for low- to high-rise applications
  • Integrates with Kawneer entrances and windows

Thermal Technology

Find out more here.

1600 Wall System®4 Curtain Wall - Architectural Detail Manual
2 MB
1600 Wall System®4 Curtain Wall - Flyer
1 MB
Curtain Wall Product Selection Guide
753 KB
1600 Wall System®3 & 4 Curtain Wall - Product Green Guide
171 KB
Traditional Curtain Wall/Aluminum Curtain Wall Systems - EPD
617 KB
1600 Wall System®3 Curtain Wall and 1600 Wall System®4 Curtain Wall - MTS
897 KB
Finishes Brochure
5 MB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
794 KB
Liquid Paint - Color Chart - Permafluor™
268 KB
1600 Wall System®4 - English
1600 Wall System®4 - French
1600 Wall System®4 - Spanish

Download All
Framing Details - IsoStrut® System
Framing Details - IsoStrut® System (P & D Int Horiz)
Framing Details - Pressure Plate System
Ribbon Wall - IsoStrut® System
Ribbon Wall - IsoStrut® System (P & D Int Horiz)
Ribbon Wall - Pressure Plate System
Corner Details
GLASSvent® Window Details - IsoStrut® System
GLASSvent® Window Details - IsoStrut® System (P & D Int horiz)
GLASSvent® Window Details - Pressure Plate System
8225TL Window Details - IsoStrut® System
8225TL Window Details - IsoStrut® System (P & D Int horiz)
8225TL Window Details - Pressure Plate System
Entrance Details - Center Hung with Concealed Closer
Entrance Details - Offset Pivot/Butt Hung with SA COC or LCN 2030/5030 Concealed Closer
Entrance Details - Offset Pivot/Butt Hung with Surface Closer
Anchoring Details
Splice Details

Download All
Framing Details - IsoStrut® System
Framing Details - IsoStrut® System (P & D Int Horiz)
Framing Details - Pressure Plate System
Corner Details
GLASSvent® Window Details - IsoStrut® System
GLASSvent® Window Details - IsoStrut® System (P & D Int horiz)
GLASSvent® Window Details - Pressure Plate System
8225TL Window Details - IsoStrut® System
8225TL Window Details - IsoStrut® System (P & D Int horiz)
8225TL Window Details - Pressure Plate System
Entrance Details - Center Hung with Concealed Closer
Entrance Details - Offset Pivot/Butt Hung with SA COC or LCN 2030/5030 Concealed Closer
Entrance Details - Offset Pivot/Butt Hung with Surface Closer
Anchoring Details
Splice Details
Download All
kawneer-1600_sys_4_6_17029.rvt
kawneer-1600_sys_4_7-12_17030.rvt

While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding.  Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.

Arconic’s SDS database provides PDF files of safety information on specific materials.  The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.

SDS # DESCRIPTION / TITLE
1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints

1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals

1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products



Search Arconic’s SDS database for safety information on specific materials.
