Curtain Wall

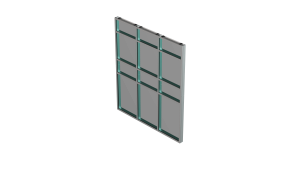

1600 Wall System®5 Curtain Wall

The 1600 Wall System®5 Curtain Wall is an inside glazed, captured curtain wall featuring screw spline fabrication. Suitable for low- to high-rise applications, the 1600 Wall System®5 Curtain Wall is ideal for buildings where inside glazing and high performance are desired for ribbon windows and multi-lite punched openings.

  • 2-1/2″ (63.5mm) sightline
  • 6″ (152.4mm) or 7-1/2″ (190.5mm) depth
  • Thermal performance
  • Low- to high-rise application
  • Seismic (AAMA 501.4 standards)
  • Vertical Structural Silicone Glazed (SSG) options
  • Ribbon window wall application option available
  • 2-1/2″ (63.5mm) sightline
  • Standard 6″ (152.4mm) or 7-1/2″ (190.5mm) system depths
  • Water Condensation management capability
  • Integral perimeter caulk leg
  • Thermally improved
  • Snap-on covers
  • Optional split vertical mullion
  • Type “A” fabrication: Screw Spline or Shear Block
  • Type “B” fabrication: Punched openings
  • Permanodic® anodized finish choices
  • Painted finishes in standard and custom choices

Optional Features

  • Steel reinforcing available
  • Rain screen and backpans
  • Pressure plate option for outside glazing requirements
  • Integrates with standard Kawneer windows and GLASSvent® windows for curtain wall
  • Integrates with Versoleil® Sunshade Outrigger System and Horizontal or Vertical Single Blade Systems
  • Profit$Maker® Plus die sets available
  • Dual-color option

Product Applications

  • Ideal for low- to high-rise applications
  • Integrates with Kawneer Entrances, windows and sun control products
  • Ribbon window wall application option available

Thermal Technology

Find out more here.

Related Product Approvals

Find out more here.

1600 Wall System®5 - Architectural Detail Manual
2 MB
[Download]
Curtain Wall Product Selection Guide
753 KB
[Download]
Traditional Curtain Wall/Aluminum Curtain Wall Systems - EPD
617 KB
[Download]
1600 Wall System®5 Curtain Wall - MTS
634 KB
[Download]
Finishes Brochure
5 MB
[Download]
Finishes Information - Architectural Detail Manual
238 KB
[Download]
Anodize Finishes - Color Chart
82 KB
[Download]
Liquid Paint - Color Chart - Permadize®
794 KB
[Download]
Liquid Paint - Color Chart - Permafluor™
268 KB
[Download]
1600 Wall System®5 - English
[docx]
[pdf]
1600 Wall System®5 - French
[docx]
[pdf]
1600 Wall System®5 - Spanish
[docx]
[pdf]

Download All
[ZIP]
Curtain Wall - Screw Spline -Typical Details
[dwg]
[dxf]
Curtain Wall - Screw Spline - Optional Pressure Plate Details - Exterior Glazed
[dwg]
[dxf]
Curtain Wall - Screw Spline - Corner Details
[dwg]
[dxf]
Curtain Wall - Screw Spline - Anchoring Details
[dwg]
[dxf]
Curtain Wall - Screw Spline - "F" and "T" Anchor Details
[dwg]
[dxf]
Curtain Wall - Screw Spline - Splice Details
[dwg]
[dxf]
Curtain Wall - Shear Block - Typical Details
[dwg]
[dxf]
Curtain Wall - Shear Block - Optional Pressure Plate Details - Ext Glazed
[dwg]
[dxf]
Curtain Wall - Shear Block - Corner Details
[dwg]
[dxf]
Curtain Wall - Shear Block with GLASSvent® Window Details
[dwg]
[dxf]
Curtain Wall - Shear Block with 8225TL Window Details
[dwg]
[dxf]
Curtain Wall - Shear Block - Anchoring Details
[dwg]
[dxf]
Curtain Wall - Shear Block - "F" AND "T" Anchor Details
[dwg]
[dxf]
Curtain Wall - Shear Block - Splice Details
[dwg]
[dxf]
Entrance Details - Center Hung with Concealed Closer
[dwg]
[dxf]
Entrance Details - Offset Pivot/Butt Hung with SA COC or LCN 2030/5030 COC
[dwg]
[dxf]
Entrance Details - Offset Pivot/Butt Hung with Surface Closer
[dwg]
[dxf]
Ribbon Window - Type-A - Typical Details
[dwg]
[dxf]
Ribbon Window - Type-A- Optional Pressure Plate Details - Ext Glazed
[dwg]
[dxf]
Ribbon Window - Type-A - Corner Details
[dwg]
[dxf]
Ribbon Window - Type-A with GLASSvent® Window Details
[dwg]
[dxf]
Ribbon Window - Type-A with 8225TL Window Details
[dwg]
[dxf]
Ribbon Window - Type-B - Typical Details
[dwg]
[dxf]
Ribbon Window - Type-B- Optional Pressure Plate Details - Ext Glazed
[dwg]
[dxf]
Ribbon Window - Type-B - Corner Details
[dwg]
[dxf]
Ribbon Window - Type-B with GLASSvent® Window Details
[dwg]
[dxf]
Ribbon Window - Type-B with 8225TL Window Details
[dwg]
[dxf]

Download All
[ZIP]
Curtain Wall - Screw Spline -Typical Details
[dwg]
[dxf]
Curtain Wall - Screw Spline - Optional Pressure Plate Details - Exterior Glazed
[dwg]
[dxf]
Curtain Wall - Screw Spline - Corner Details
[dwg]
[dxf]
Curtain Wall - Screw Spline - Anchoring Details
[dwg]
[dxf]
Curtain Wall - Screw Spline - "F" and "T" Anchor Details
[dwg]
[dxf]
Curtain Wall - Screw Spline - Splice Details
[dwg]
[dxf]
Curtain Wall - Shear Block - Typical Details
[dwg]
[dxf]
Curtain Wall - Shear Block - Optional Pressure Plate Details - Ext Glazed
[dwg]
[dxf]
Curtain Wall - Shear Block - Corner Details
[dwg]
[dxf]
Curtain Wall - Shear Block with GLASSvent® Window Details
[dwg]
[dxf]
Curtain Wall - Shear Block with 8225TL Window Details
[dwg]
[dxf]
Curtain Wall - Shear Block - Anchoring Details
[dwg]
[dxf]
Curtain Wall - Shear Block - "F" AND "T" Anchor Details
[dwg]
[dxf]
Curtain Wall - Shear Block - Splice Details
[dwg]
[dxf]
Entrance Details - Center Hung with Concealed Closer
[dwg]
[dxf]
Entrance Details - Offset Pivot/Butt Hung with SA COC or LCN 2030/5030 COC
[dwg]
[dxf]
Entrance Details - Offset Pivot/Butt Hung with Surface Closer
[dwg]
[dxf]
Ribbon Window - Type-A - Typical Details
[dwg]
[dxf]
Ribbon Window - Type-A- Optional Pressure Plate Details - Ext Glazed
[dwg]
[dxf]
Ribbon Window - Type-A - Corner Details
[dwg]
[dxf]
Ribbon Window - Type-A with GLASSvent® Window Details
[dwg]
[dxf]
Ribbon Window - Type-A with 8225TL Window Details
[dwg]
[dxf]
Ribbon Window - Type-B - Typical Details
[dwg]
[dxf]
Ribbon Window - Type-B- Optional Pressure Plate Details - Ext Glazed
[dwg]
[dxf]
Ribbon Window - Type-B - Corner Details
[dwg]
[dxf]
Ribbon Window - Type-B with GLASSvent® Window Details
[dwg]
[dxf]
Ribbon Window - Type-B with 8225TL Window Details
[dwg]
[dxf]
Download All
[ZIP]
kawneer-1600_sys_5_6_ss_17034.rvt
[RVT]
kawneer-1600_sys_5_7-12_ss_21013.rvt
[RVT]

While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding.  Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.

Arconic’s SDS database provides PDF files of safety information on specific materials.  The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.

SDS # DESCRIPTION / TITLE
1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints

1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals

1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products



Search Arconic’s SDS database for safety information on specific materials.
