- Oversize pull handles provide a comfortable handgrip
- Wheels roll on a raised track bead with a stainless-steel cover to avoid frame sill debris and wear and tear
- Lock and fixed panel interior anchors resist exterior prying
- Snap-in threshold cover protects frame sill from damage

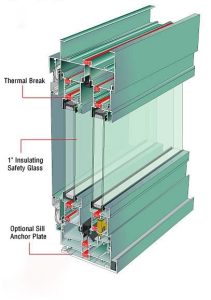

- 1″ insulating glass made with mandatory safety glass lites
- Exterior key handle, mortise lock, and interior latch handle
- Plated steel wheel; 10 psf frame sill
- XO or OX (X = operating panel – specify choice)
- 10 psf standard 12 psf or 15 psf frame sill optional
- Exposed meeting stile reinforcements, per design load and door height
- Stainless steel wheels and hardware for operating panel optional
- Exterior or internal muntins
- Exterior Screens
- Performance AW 50
Anodized and Painted Aluminum Extrusions - EPD
765 KB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
794 KB
Liquid Paint - Color Chart - Permafluor™
268 KB
TR-8300 Sliding Glass Door - English
TR-8300 Sliding Glass Door - French
TR-8300 Sliding Glass Door - Spanish
Door_Curtain_Wall-Sliding-TR-8300.rfa
Door_Curtain_Wall-Sliding-TR-8303.rfa
Door_Curtain_Wall-Sliding-TR-8304.rfa
Door_Curtain_Wall-Sliding_With_Sidelite-TR-8300_TR-8350.rfa
Door_Curtain_Wall-Sliding_With_Transom-TR-8300.rfa
While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding. Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.
Arconic’s SDS database provides PDF files of safety information on specific materials. The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.
SDS # DESCRIPTION / TITLE
1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints
1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals
1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products
Search Arconic’s SDS database for safety information on specific materials.
