- Inside glazed system
- 2-1/4″ (57.2mm) sight line with standard 6″ (152.4mm) system depth
- IsoLock® lanced pour and debridged 3/8″ (9.5mm) thermal break
- Screw spline fabrication and joinery
- Standard infill option 1″ (25.4mm) wet glazed and 1-3/16″ (30.2mm) tape glazed
- Silicone compatible glazing materials for long lasting seals
- Inside and outside corner members are available for 90° and 135° applications
- Permanodic® anodized finish choices
- Painted finishes in standard and custom choices
Optional Features
- Integrates with Kawneer GLASSvent® UT Windows and 2000T Terrace Doors
- Balcony door options
- Strap anchors
- Optional slab edge covers (Extruded / ACM panel), Spandrel glass
- Optional flush receptor with spandrel glass / ACM panel
- Steel reinforcing
- Head receptor reinforcing clip
- Wedge gasket at interior head receptor stop
- Profit$Maker® Plus die sets
- Ribbon window wall application option available
MetroView® FG 601T PG Window Wall - Architectural Detail Manual
4 MB
MetroView® FG 601T PG Window Wall - Architectural Detail Manual (Spanish)
4 MB
MetroView® FG 601T PG Window Wall - Flyer
4 MB
Window Wall/Aluminum Window Wall Systems - EPD
866 KB
MetroView® FG 501T Window Wall and FG 601T PG Window Wall - MTS
270 KB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
794 KB
Liquid Paint - Color Chart - Permafluor™
268 KB
MetroView® FG 601T PG Window Wall - English
MetroView® FG 601T PG Window Wall - French
MetroView® FG 601T PG Window Wall - Spanish
Captured/Std. Receptor w/Slab Cover
Captured/Std. Receptor at Balcony
SSG/Std. Receptor w/Slab Cover
SSG/Std. Receptor at Balcony
Captured/Flush Receptor w/Slab Cover
SSG/Flush Receptor w/Slab Cover
Captured and SSG/Typical Corners
Typical GLASSvent® UT Window Details
Captured and SSG w/2000T Terrace Door-Outswing
Captured and SSG w/2000T Terrace Door-Inswing
Captured/Std. Receptor w/Slab Cover
Captured/Std. Receptor at Balcony
SSG/Std. Receptor w/Slab Cover
SSG/Std. Receptor at Balcony
Captured/Flush Receptor w/Slab Cover
SSG/Flush Receptor w/Slab Cover
Captured and SSG/Typical Corners
Typical GLASSvent® UT Window Details
Captured and SSG w/2000T Terrace Door-Outswing
Captured and SSG w/2000T Terrace Door-Inswing

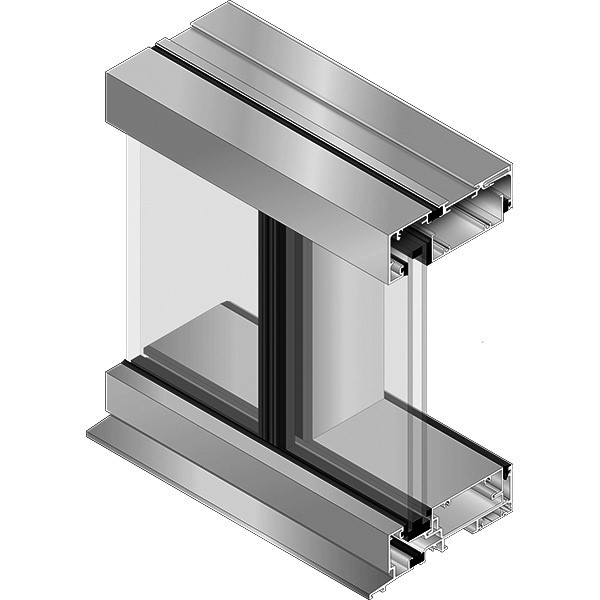

MetroView™ FG 601T PG Window Wall
MetroView™ FG 601T PG Window Wall
While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding. Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.
Arconic’s SDS database provides PDF files of safety information on specific materials. The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.
SDS # DESCRIPTION / TITLE
1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints
1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals
1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products
Search Arconic’s SDS database for safety information on specific materials.
