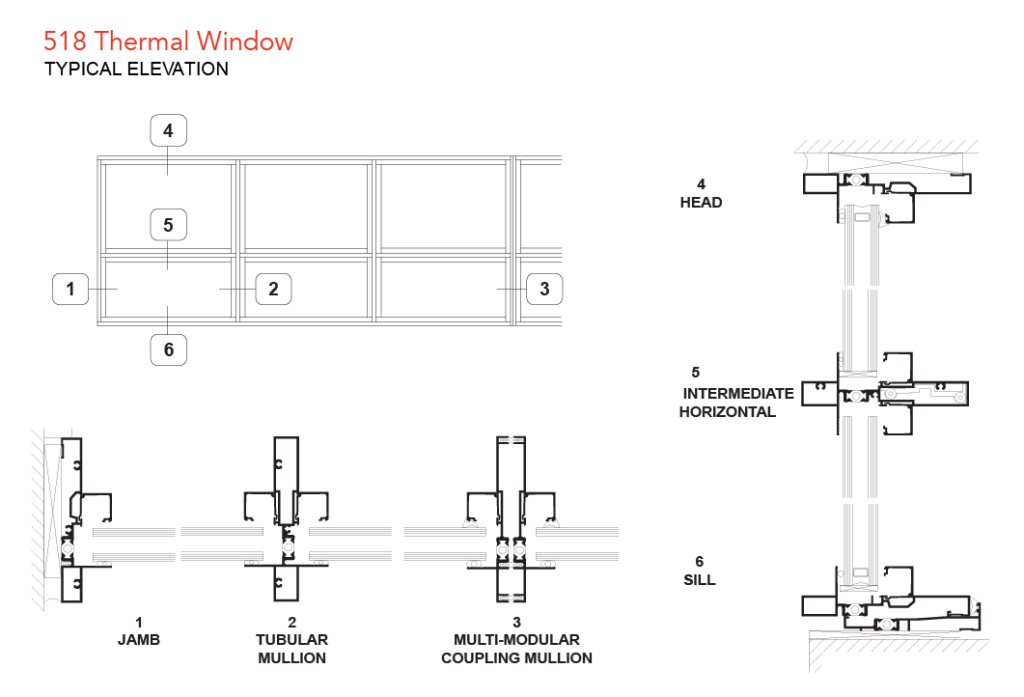

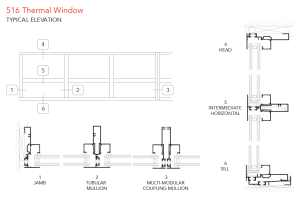

Thermal Window Profiles

Windows

516/518 Thermal Windows

Designed for punched openings and high performing ribbon window applications, the 516/518 Thermal Windows provide an economical, high-performance and thermally broken product that is easily fabricated and installed.

  • 4″ (101.6mm) or 5″ (127mm) depth
  • Thermal performance
  • Fixed ribbon window configuration
  • 14.6 mm IsoPort™ glass-reinforced nylon 6/6 thermal break provides:
    • Improved condensation resistance and thermal transmittance performance capability
    • Rigid profile with composite structural performance
    • Exterior / Interior finish options
  • Meets or exceeds the highest performance levels of CSA standard
  • CAN/CSA-A440 windows
  • Seamless coupling mullion features unbroken weather joint on exterior surface
  • Provision for thermal movement
  • Simple joinery with overlapping flanges for economical construction and good weathering capability
  • Optional full rain screen capability
  • Accommodates 1″ (25 mm) sealed glazing units
  • Glass installed and replaced from interior
  • Exterior pre-shim butyl glazing tapes
  • Interior EPDM rubber glazing gaskets
  • Lock-in glass stop
  • Open-in frameless vent option
  • Companion open-out or open-in vent inserts available
  • Accepts 512 Ventrow Thermal Ventilator



Thermal Technology

Find out more here.

516/518 Thermal Window - Architectural Detail Manual
3 MB
Product Selection Guide Windows
588 KB
Product Selection Guide Hurricane Resistant Windows
472 KB
Product Selection Guide Blast Mitigation Windows
186 KB
516/518 Thermal Window - Flyer
6 MB
Kawneer Window Accessories
302 KB
Fixed & Ribbon Windows/Aluminum Windows - EPD
604 KB
Finishes Brochure
5 MB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
1 MB
Liquid Paint - Color Chart - Permafluor™
350 KB
516/518 Thermal Fixed Windows - English
516/518 Thermal Fixed Windows - French

Download All
Type "A" Screw Spline Assembly Details
Type "B" Shear Block Assembly Details
Typical Corner Details

Download All
Type "B" Shear Block Assembly Details
Typical Corner Details

Download All
Type "B" Shear Block Assembly Details
Typical Corner Details
Download All
kawneer-516 isoport_21016.rvt
kawneer-518 isoport_21017.rvt

While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding.  Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.

Arconic’s SDS database provides PDF files of safety information on specific materials.  The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.

SDS # DESCRIPTION / TITLE
1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints

1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals

1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products



Search Arconic’s SDS database for safety information on specific materials.
